Typical Open/Close Valve I/O

About this detail

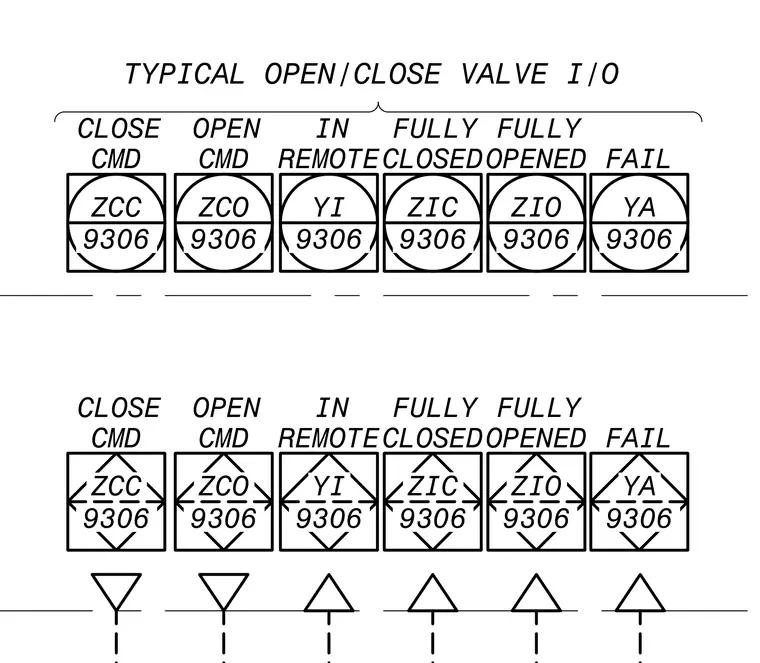

An open/close valve control loop contains typical input and output points including close command, open command, remote input, fully closed status, fully opened status, and valve fail indicators. Each signal block displays the corresponding tag designation such as ZCC, ZCO, YI, ZIC, ZIO, and YA with associated loop numbers.
