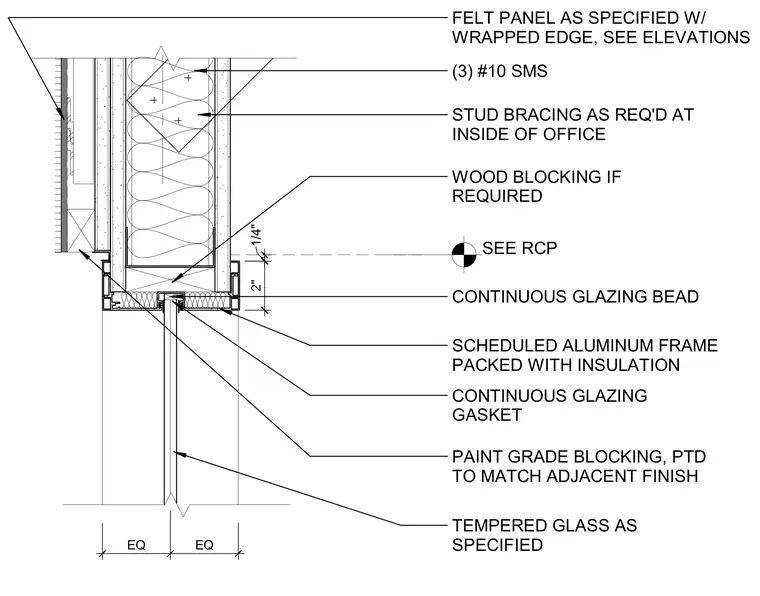

An aluminum frame is packed with insulation and secured with three number ten sheet metal screws to wood blocking. The head assembly receives tempered glass held by continuous glazing beads and gaskets. A felt panel with wrapped edges finishes the upper wall condition alongside paint-grade blocking finished to match adjacent surfaces. Stud bracing is provided at the interior of the office as required.
CONTINUOUS GLAZING BEAD WOOD BLOCKING IF REQUIRED EQ EQ TEMPERED GLASS AS SPECIFIED CONTINUOUS GLAZING GASKET (3) #10 SMS SEE RCP STUD BRACING AS REQ'D AT INSIDE OF OFFICE 1/4" SCHEDULED ALUMINUM FRAME PACKED WITH INSULATION 2" FELT PANEL AS SPECIFIED W/ WRAPPED EDGE, SEE ELEVATIONS PAINT GRADE BLOCKING, PTD TO MATCH ADJACENT FINISH
