Interiors · I-75T8C

Backlit Ombre Glass Wall with Stretch Acoustic Fabric Ceiling

Materials

Elements

About this detail

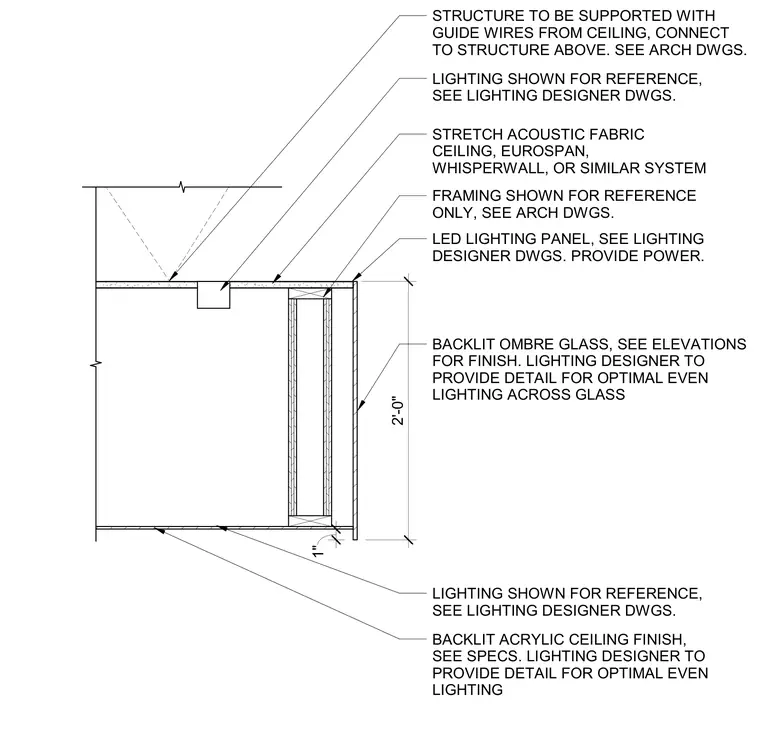

A two-foot-tall backlit ombre glass panel system is installed beneath reference framing and a stretch acoustic fabric ceiling assembly like Eurospan or WhisperWall. The glass panel is coordinated with a lighting designer to achieve even illumination using LED lighting panels powered through dedicated wiring. Guide wires from the ceiling suspend the internal structure directly to the overhead building structure per architectural drawings. An adjacent one-inch backlit acrylic ceiling finish integrates at the base of the assembly with lighting provided by the lighting designer.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
