Interiors · I-75CKZ

Trimless Linear Diffuser at Acoustic Plaster Ceiling

Materials

Steel Metal (misc.)EIFS / Plaster / Stucco

Elements

About this detail

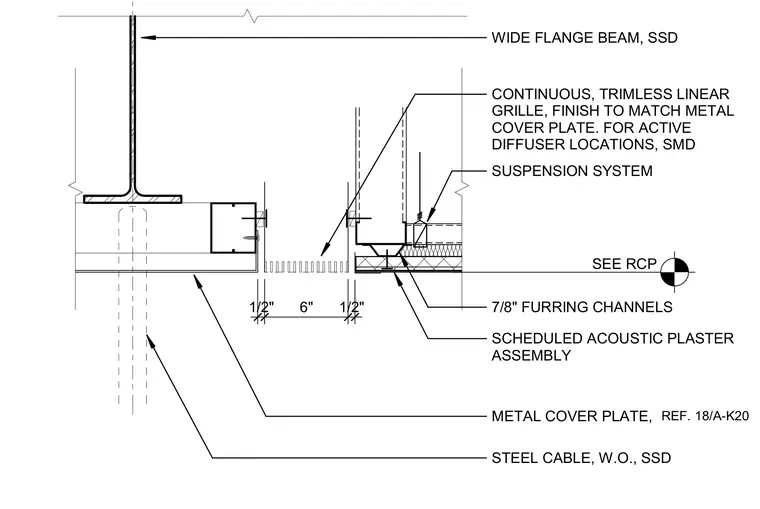

An acoustic plaster ceiling assembly is suspended from an overhead wide flange beam using a steel cable and furring channels. A continuous trimless linear grille with a finish matching the metal cover plate is integrated into the ceiling system. A metal cover plate references sheet 18/A-K20 for alignment and installation details.
