Interiors · I-75364

Casework - Sink Base & Upper

Elements

About this detail

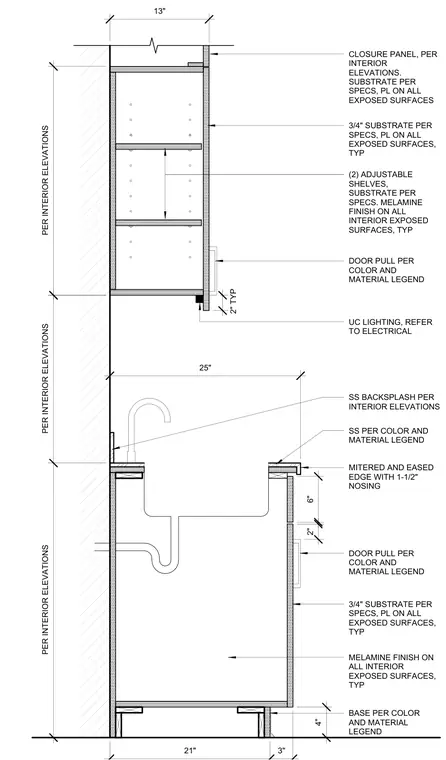

A sink base cabinet and matching upper wall cabinet configuration comprise the casework. The upper cabinet features a thirteen-inch depth with three-quarter-inch substrate per specifications, plastic laminate on all exposed surfaces, and a melamine finish on interior surfaces. Two adjustable shelves are enclosed within the upper unit, and under-cabinet lighting is coordinated per electrical drawings. A two-inch light rail and door pulls selected per the color and material legend are mounted to the doors. The base cabinet sits on a four-inch base with a twenty-one-inch counter depth, featuring a mitered and eased edge with a one-and-a-half-inch nosing. A stainless steel sink basin, faucet, and stainless steel backsplash are integrated into the countertop per interior elevations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
