Valve V-71326 Instrumentation and Control Loop Diagram

About this detail

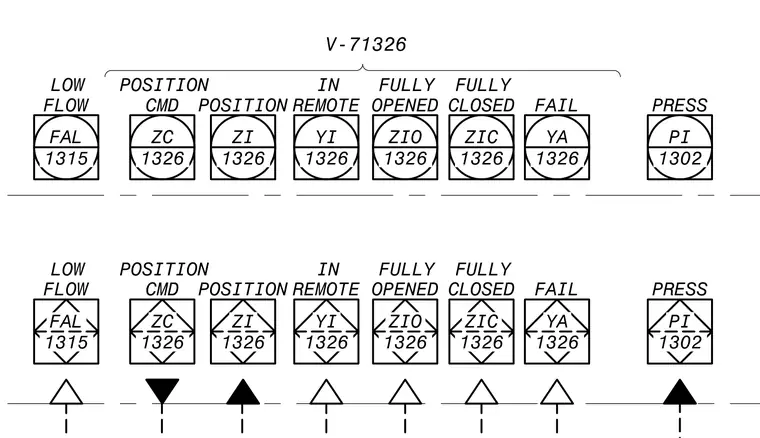

Instrumentation and control loop configuration for valve V-71326 comprising low flow indicator FAL 1315, pressure indicator PI 1302, position command ZC 1326, position indicator ZI 1326, remote status indicator YI 1326, fully opened indicator ZIO 1326, fully closed indicator ZIC 1326, and fail alarm YA 1326, with associated control signals and status points for system monitoring.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
