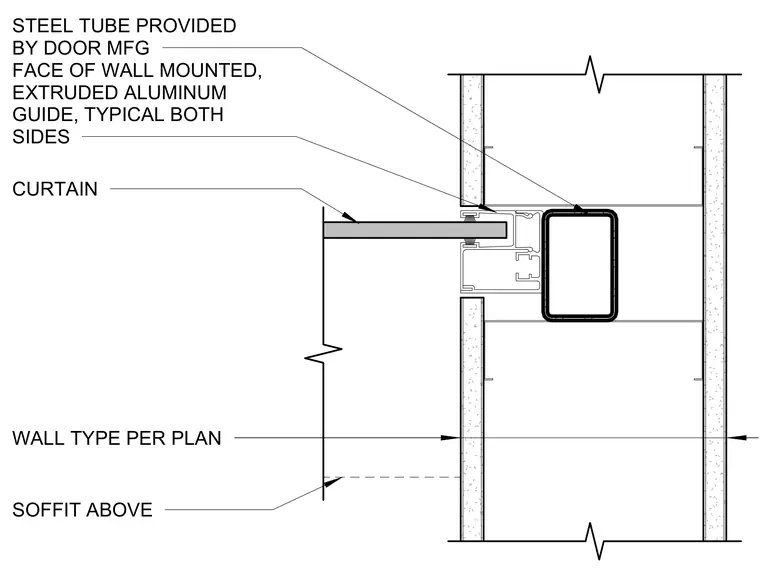

An extruded aluminum guide is face-mounted to both sides of a partition wall per plan, engaging the coiling grille curtain. The assembly is supported by a steel tube provided by the door manufacturer and integrated into the wall framing. A soffit is located above the opening.
FACE OF WALL MOUNTED, EXTRUDED ALUMINUM GUIDE, TYPICAL BOTH SIDES WALL TYPE PER PLAN STEEL TUBE PROVIDED BY DOOR MFG CURTAIN SOFFIT ABOVE
