Interiors · I-6XFB9

ADA Accessible Millwork Casework Shroud

Materials

Steel Cold-formed Steel Metal (misc.)Gypsum / Drywall

Elements

About this detail

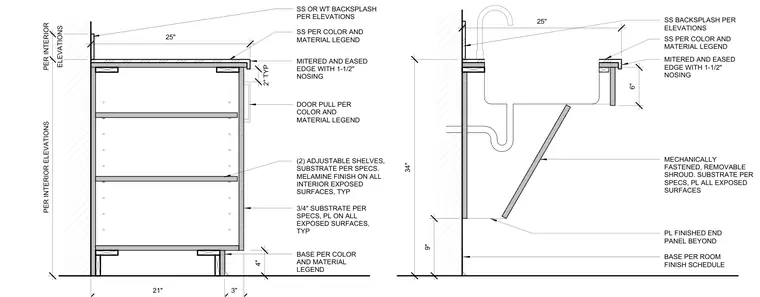

An accessible vanity and cabinet assembly with a 34-inch rim height and a 9-inch bottom clearance. The construction features a substrate specified per project requirements with a plastic laminate finish on all exposed surfaces, finished end panels, and a stainless steel or solid surface backsplash. The countertop includes a mitered and eased edge with a 1 1/2-inch nosing profile and a 25-inch depth. The interior cabinet is fitted with two adjustable shelves backed in melamine finish on all exposed surfaces, resting on a 4-inch base detailed per the room finish schedule. A mechanically fastened, removable plastic laminate shroud conceals the plumbing under the sink basin to comply with ADA accessibility standards.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
