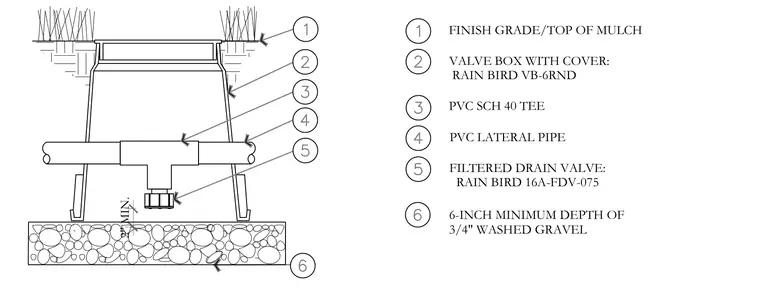

A circular valve box with a cover sits flush with the finish grade and top of mulch. A polyvinyl chloride schedule 40 tee connects to the polyvinyl chloride lateral pipe within the box. A filtered drain valve threads into the bottom of the tee, positioned over a minimum six-inch depth of three-quarter-inch washed gravel.
2" MIN. FINISH GRADE/TOP OF MULCH VALVE BOX WITH COVER: RAIN BIRD VB-6RND PVC SCH 40 TEE PVC LATERAL PIPE FILTERED DRAIN VALVE: RAIN BIRD 16A-FDV-075 6-INCH MINIMUM DEPTH OF 3/4" WASHED GRAVEL
