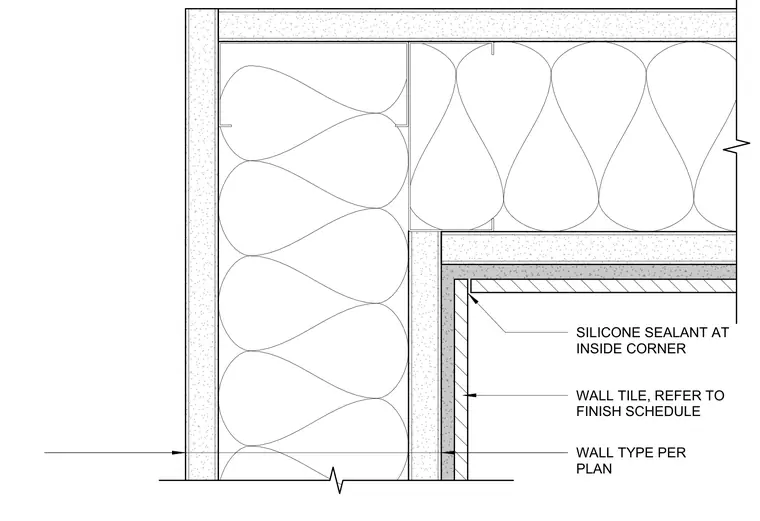

An inside corner intersection of two framed wall types per plan receives a layer of wall tile referenced to the finish schedule. A bead of silicone sealant fills the vertical inside corner joint between the intersecting tile surfaces.
WALL TYPE PER PLAN SILICONE SEALANT AT INSIDE CORNER WALL TILE, REFER TO FINISH SCHEDULE
