Interiors · I-6FR3K

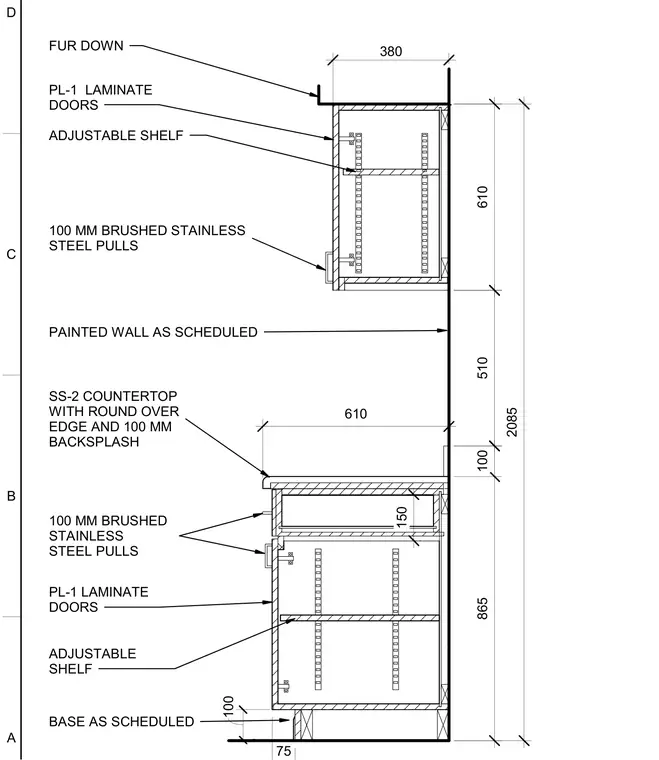

Millwork Section with Upper and Lower Cabinets

Materials

Elements

About this detail

An upper wall-hung cabinet with a depth of 380 millimeters and a height of 610 millimeters features PL-1 laminate doors, adjustable shelving supported by pilasters, and 100 millimeter brushed stainless steel pulls. Below the upper cabinet, a painted wall spans a vertical clearance of 510 millimeters down to a countertop. The base cabinet assembly includes an SS-2 countertop with a round-over edge and a 100 millimeter backsplash, positioned over drawers and base cabinets with PL-1 laminate doors, adjustable shelves, and 100 millimeter brushed stainless steel pulls. The lower cabinet rests on a base as scheduled with a 75 millimeter setback and a 100 millimeter toe kick height, set against a furred-down wall assembly.
