Interiors · I-667MW

Casework - Drawer / Door Base

Materials

Elements

About this detail

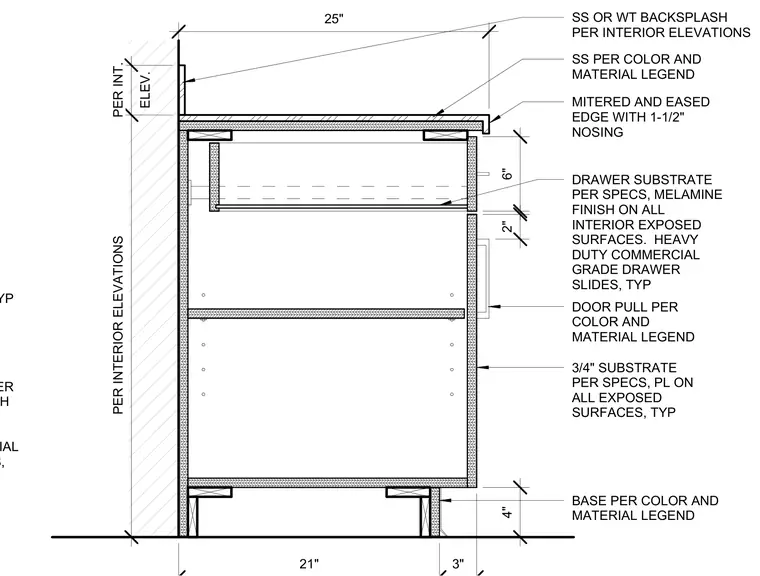

This interior casework assembly features a twenty-five inch deep countertop with a mitered and eased edge with a one-and-one-half-inch nosing and a stainless steel or solid surface backsplash sized per interior elevations. The six-inch drawer substrate utilizes a melamine finish on all interior exposed surfaces along with heavy-duty commercial grade drawer slides. The three-quarter-inch substrate features plastic laminate on all exposed surfaces with a matching base per the color and material legend. Door pulls are installed per the color and material legend.
