Millwork Counter and Transaction Window Section

Materials

Steel Stainless Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Walls Partitions Windows Millwork / Casework

About this detail

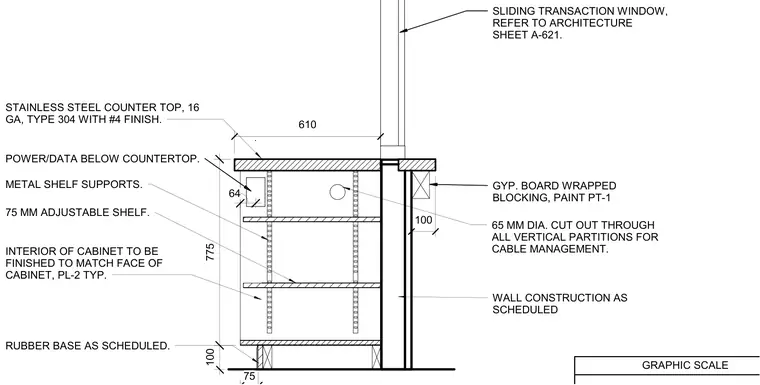

The assembly features a sixteen-gauge Type 304 stainless steel countertop with a number 4 finish supported by wood or metal framing. Adjustable shelving rests on metal shelf supports inside the cabinet, which has interior finishes matching the face laminate PL-2. A sixty-five millimeter diameter cut out through the vertical partitions accommodates cable management, while power and data outlets are positioned below the countertop. A rubber base sits at the floor level of the cabinetry. Above the counter, a sliding transaction window aligns with the wall construction as scheduled, and a gypsum board wrapped blocking painted PT-1 frames the upper transition.
