Plumbing · I-5W34G

Drip Control Zone Kit Detail

Elements

Waterproofing / Flashing Connections / Plates

About this detail

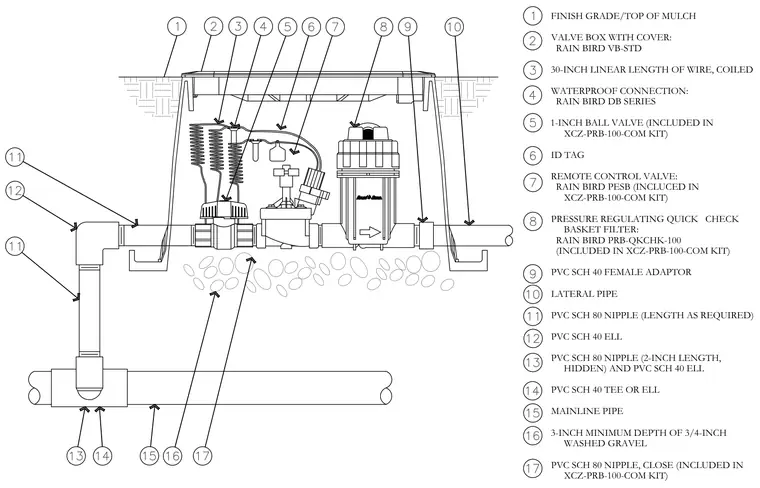

An irrigation drip control zone assembly is installed below finish grade within a Rain Bird VB-STD valve box set atop a three-inch minimum depth of three-quarter-inch washed gravel. The mainline pipe connects through PVC Schedule 80 close nipples, tees, elbows, and Schedule 40 female adaptors to a one-inch ball valve, a Rain Bird PESB remote control valve with an identification tag, and a Rain Bird PRB-QKCHK-100 pressure regulating quick check basket filter. Waterproof connections utilizing Rain Bird DB series connectors join thirty-inch linear lengths of coiled wire to the system. Lateral piping extends from the assembly to distribute water to the landscape areas.
