Interiors · I-5VYWH

Tile Base at Wall Intersection

Materials

Elements

About this detail

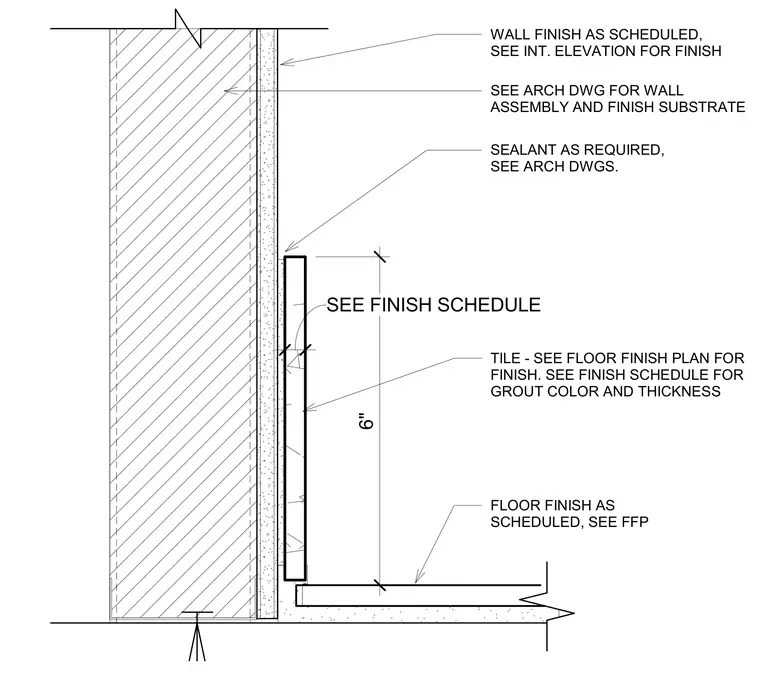

A six-inch tile base mounts against a wall substrate with scheduled wall finish, sitting above the floor finish. Sealant is applied at the top of the tile base. Grout color, thickness, tile specifications, and floor finish are coordinated per the interior finish schedule and floor finish plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
