Electrical · I-5R2ET

Ash System Control Panel PLC I/O Layout

About this detail

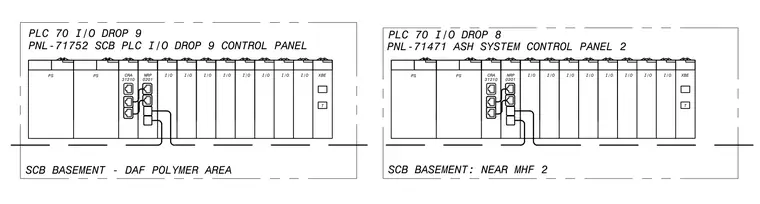

Programmable logic controller drop assemblies comprising modular input and output blocks, power supply units, communication modules, and termination interfaces. The modular control panels include PLC 70 I/O drops 8 and 9 equipped with power supply modules, CRA 31210 and NRP 0201 communication interfaces, multiple standard I/O modules, and terminal connection nodes. Wiring drops route from the bottom interface modules into the control cabinet assemblies.
