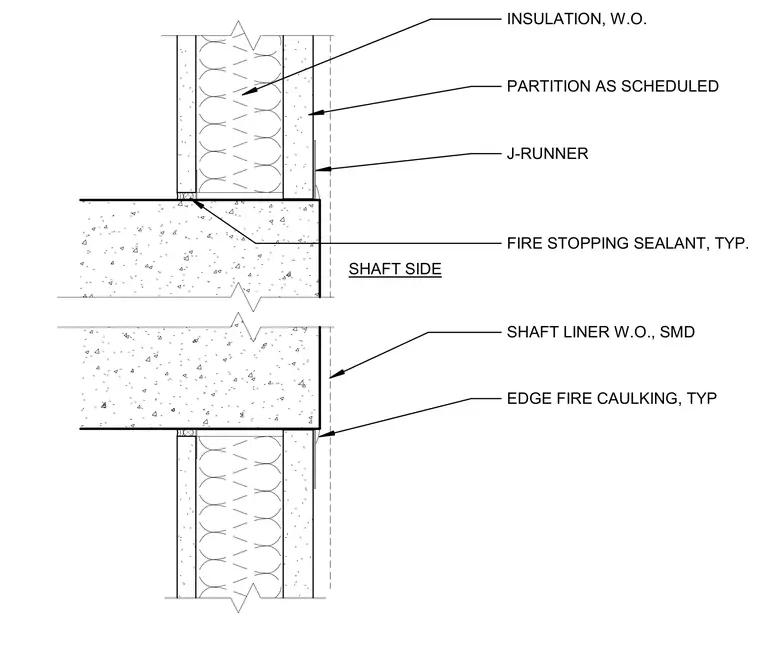

A partition wall as scheduled connects to a concrete floor slab incorporating batt insulation within the stud cavity. A J-runner track secures the wall framing at the slab edge, supplemented by typical fire stopping sealant. The shaft side features a shaft liner with structural metal stud framing and edge fire caulking applied at the slab interfaces.
INSULATION, W.O. PARTITION AS SCHEDULED EDGE FIRE CAULKING, TYP J-RUNNER FIRE STOPPING SEALANT, TYP. SHAFT SIDE SHAFT LINER W.O., SMD
