Structural · I-5HE6F

Roof Catwalk Guardrail at HSS Roof Beam

Materials

Steel

Elements

Columns Beams Roofs

Connections

HSS Connection

About this detail

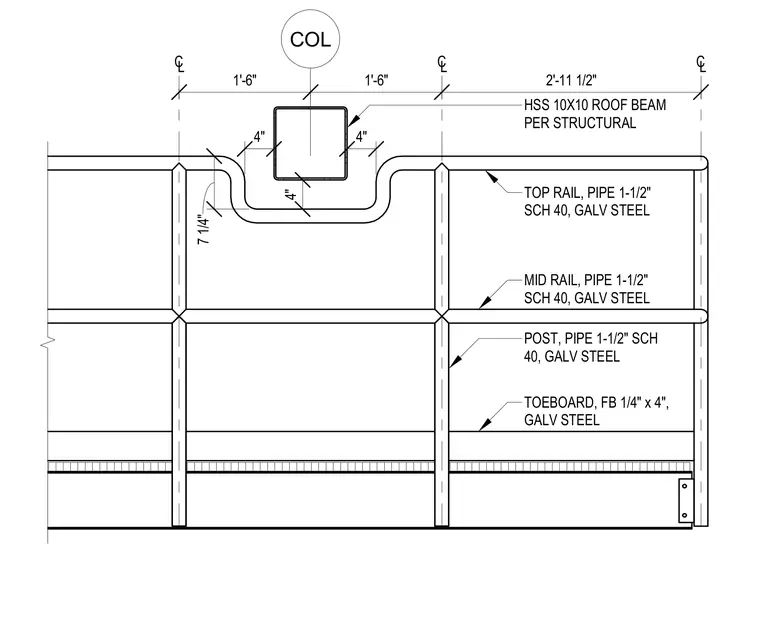

A galvanized steel roof catwalk guardrail intersects an HSS 10x10 roof beam. The top rail, mid rail, and posts are constructed from 1-1/2 inch schedule 40 galvanized steel pipe. A 1/4 inch by 4 inch galvanized steel flat bar forms the toeboard at the base of the assembly. The top rail drops around the structural column with designated clearances, maintaining continuity across the support layout.
