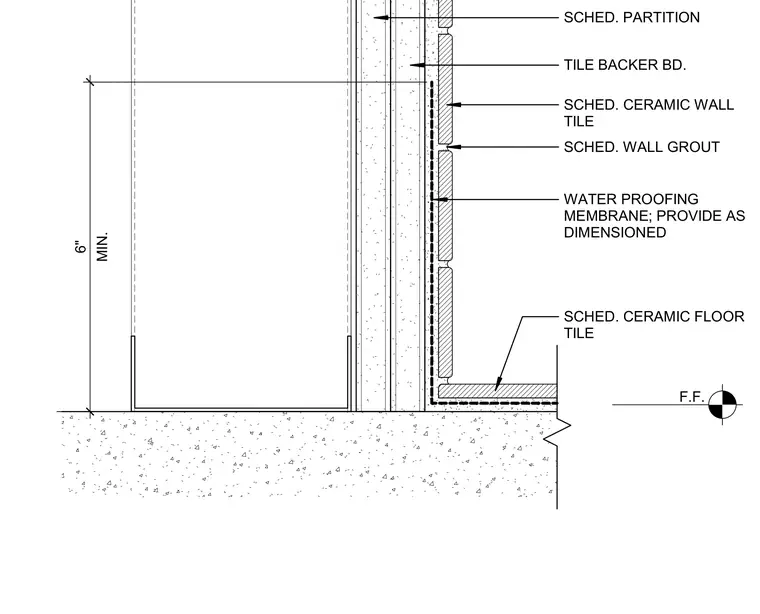

A scheduled ceramic floor tile rests directly upon finished flooring over a concrete slab. A waterproof membrane is applied beneath the floor tile and extends up behind the wall assembly. The wall partition consists of a tile backer board finished with scheduled ceramic wall tile and wall grout, with a minimum six-inch vertical dimension noted from the finished floor.
SCHED. CERAMIC WALL TILE F.F. SCHED. WALL GROUT SCHED. CERAMIC FLOOR TILE TILE BACKER BD. SCHED. PARTITION WATER PROOFING MEMBRANE; PROVIDE AS DIMENSIONED MIN. 6"
