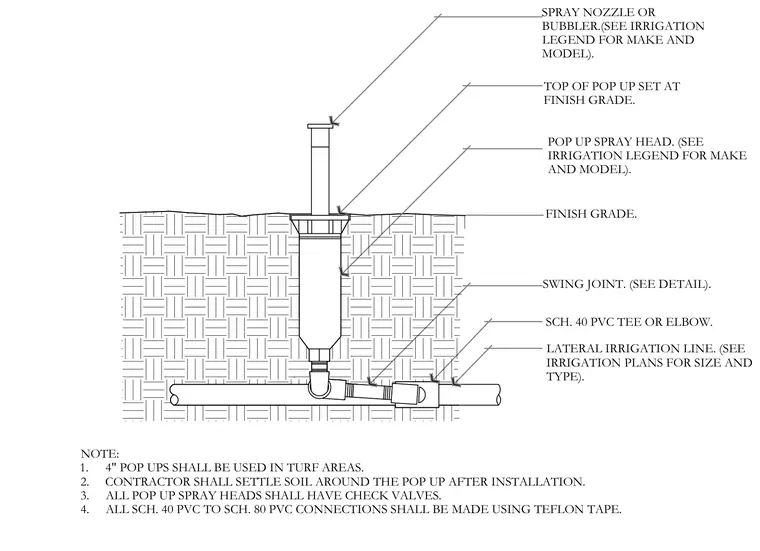

The pop-up spray head connects to a lateral irrigation line through a swing joint and a Schedule 40 PVC tee or elbow, with the top of the spray head set level with the finish grade. A spray nozzle or bubbler mounts to the top of the pop-up body, and check valves are required on all units. Schedule 40 to Schedule 80 PVC connections are sealed using Teflon tape. Four-inch pop-ups are specified for turf areas, and the contractor must settle the soil around the pop-up after installation.
SCH. 40 PVC TEE OR ELBOW. NOTE: 1. 4" POP UPS SHALL BE USED IN TURF AREAS. 2. CONTRACTOR SHALL SETTLE SOIL AROUND THE POP UP AFTER INSTALLATION. 3. ALL POP UP SPRAY HEADS SHALL HAVE CHECK VALVES. 4. ALL SCH. 40 PVC TO SCH. 80 PVC CONNECTIONS SHALL BE MADE USING TEFLON TAPE. SPRAY NOZZLE OR BUBBLER.(SEE IRRIGATION LEGEND FOR MAKE AND MODEL). TOP OF POP UP SET AT FINISH GRADE. POP UP SPRAY HEAD. (SEE IRRIGATION LEGEND FOR MAKE AND MODEL). LATERAL IRRIGATION LINE. (SEE IRRIGATION PLANS FOR SIZE AND TYPE). SWING JOINT. (SEE DETAIL). FINISH GRADE.
