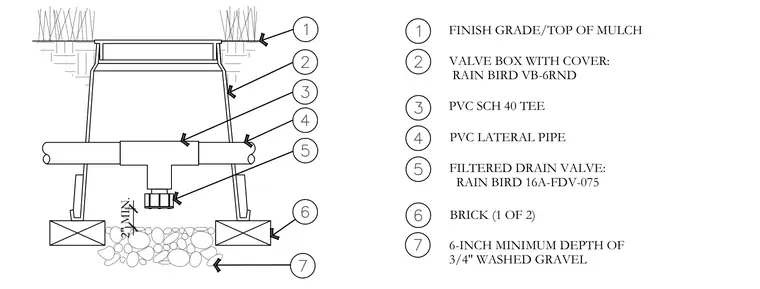

A Rain Bird VB-6RND round valve box with cover encloses a PVC schedule forty tee connected to a PVC lateral pipe. A filtered drain valve, model Rain Bird 16A-FDV-075, threads into the bottom of the tee above a minimum six-inch depth of three-quarter-inch washed gravel. Bricks support the assembly, maintaining a two-inch minimum clearance above the gravel bed. The top of the valve box aligns flush with the finish grade and top of mulch.
2" MIN. FINISH GRADE/TOP OF MULCH VALVE BOX WITH COVER: RAIN BIRD VB-6RND PVC SCH 40 TEE PVC LATERAL PIPE FILTERED DRAIN VALVE: RAIN BIRD 16A-FDV-075 BRICK (1 OF 2) 6-INCH MINIMUM DEPTH OF 3/4" WASHED GRAVEL
