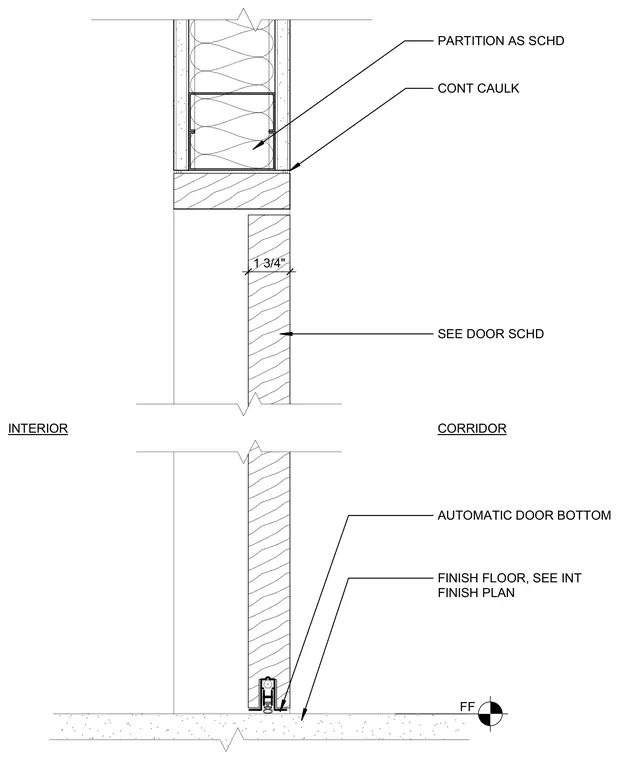

An interior door assembly connects a 1-3/4 inch door within a scheduled partition. Continuous caulking seals the partition head above the frame. An automatic door bottom is integrated into the sill of the door panel above the finish floor.
FF AUTOMATIC DOOR BOTTOM CONT CAULK FINISH FLOOR, SEE INT FINISH PLAN SEE DOOR SCHD PARTITION AS SCHD 1 3/4" CORRIDOR INTERIOR
