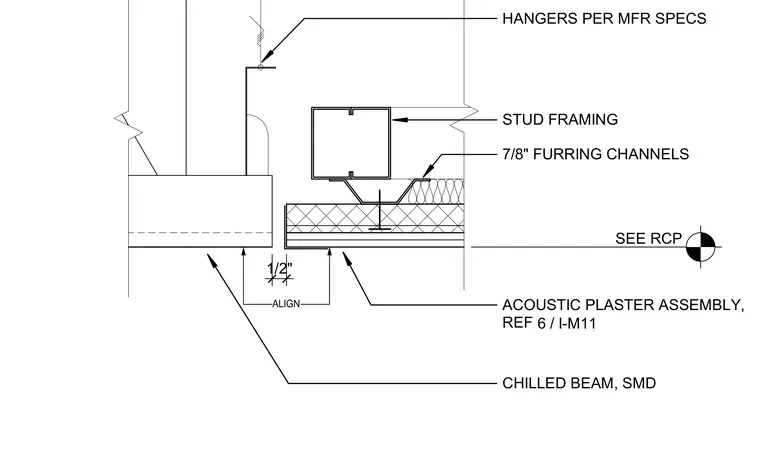

An acoustic plaster ceiling assembly integrates with a chilled beam using seven-eighths-inch furring channels and stud framing. Hangers are installed per manufacturer specifications to support the ceiling assembly. A one-half-inch alignment clearance is maintained between the acoustic plaster finish and the chilled beam housing.
SEE RCP ACOUSTIC PLASTER ASSEMBLY, REF 7/8" FURRING CHANNELS STUD FRAMING 1/2" CHILLED BEAM, SMD HANGERS PER MFR SPECS ALIGN 6 / I-M11
