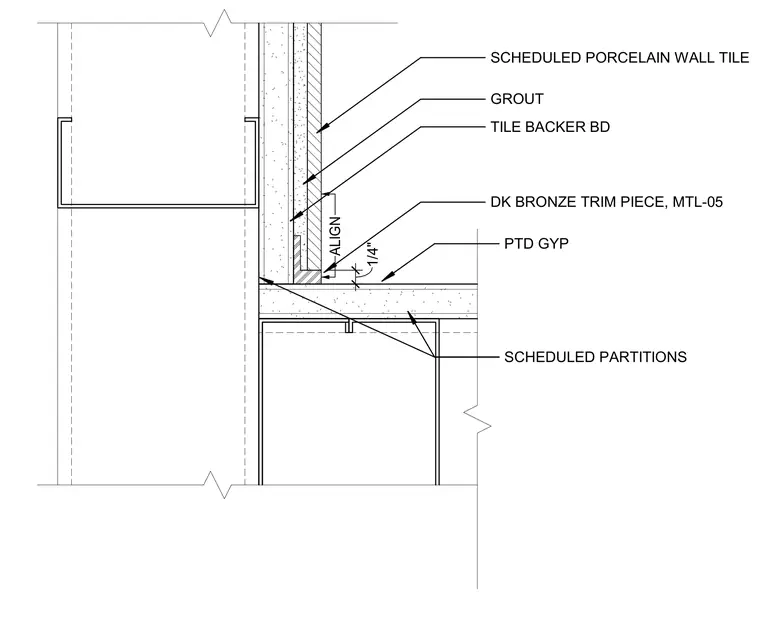

Scheduled porcelain wall tile is set over grout and tile backer board on a scheduled partition, returning into an inside corner finished with a dark bronze metal trim piece. The trim piece aligns with adjacent painted gypsum board surfaces, maintaining a one-quarter-inch detail clearance.
SCHEDULED PARTITIONS TILE BACKER BD GROUT SCHEDULED PORCELAIN WALL TILE ALIGN DK BRONZE TRIM PIECE, MTL-05 1/4" PTD GYP
