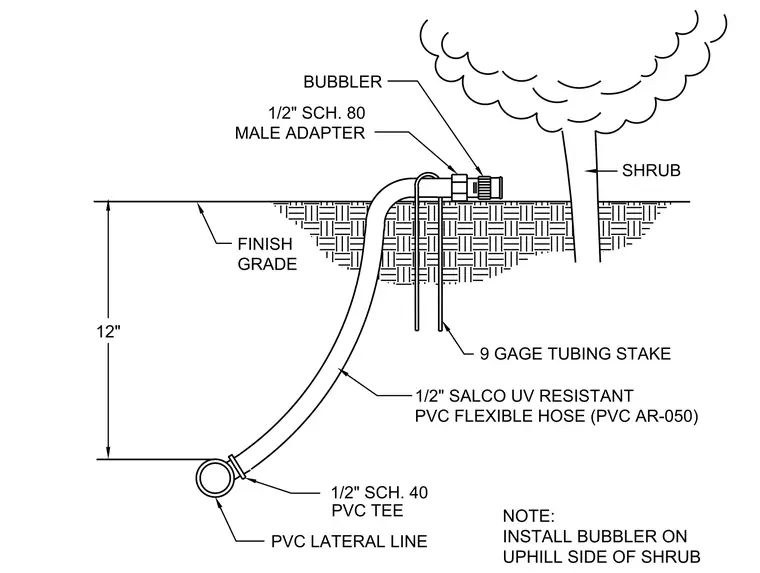

A shrub bubbler is installed on the uphill side of a shrub, connected to a 1/2-inch Schedule 40 PVC lateral line via a PVC tee and a 1/2-inch Salco UV resistant PVC flexible hose. The hose connects to a 1/2-inch Schedule 80 male adapter at the bubbler assembly, which is secured near finish grade with a 9-gauge tubing stake.
NOTE: INSTALL BUBBLER ON UPHILL SIDE OF SHRUB BUBBLER PVC LATERAL LINE PVC TEE 1/2" SCH. 40 1/2" SCH. 80 MALE ADAPTER FINISH GRADE 9 GAGE TUBING STAKE 1/2" SALCO UV RESISTANT PVC FLEXIBLE HOSE (PVC AR-050) SHRUB 12"
