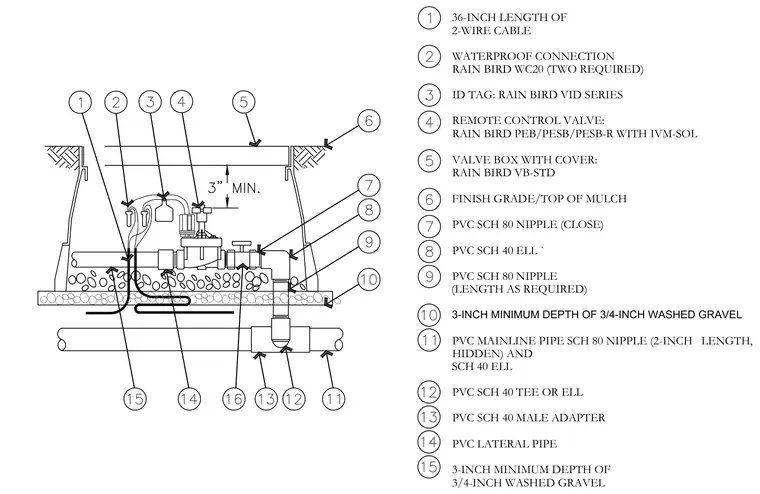

An underground irrigation remote control valve installation connects to PVC mainline and lateral piping housed within a protective valve box with a cover. The assembly sits above a three-inch minimum depth of three-quarter-inch washed gravel bed and incorporates schedule eighty and schedule forty PVC nipples, elbows, tees, and male adapters. Waterproof wire connections and an identification tag link the valve wiring to a two-wire control cable. The valve box is set flush with the finish grade and top of mulch layer.
36-INCH LENGTH OF 2-WIRE CABLE WATERPROOF CONNECTION RAIN BIRD WC20 (TWO REQUIRED) ID TAG: RAIN BIRD VID SERIES REMOTE CONTROL VALVE: RAIN BIRD PEB/PESB/PESB-R WITH IVM-SOL VALVE BOX WITH COVER: RAIN BIRD VB-STD FINISH GRADE/TOP OF MULCH PVC SCH 80 NIPPLE (CLOSE) PVC SCH 40 ELL ` PVC SCH 80 NIPPLE (LENGTH AS REQUIRED) 3-INCH MINIMUM DEPTH OF 3/4-INCH WASHED GRAVEL PVC MAINLINE PIPE SCH 80 NIPPLE (2-INCH LENGTH, HIDDEN) AND SCH 40 ELL PVC SCH 40 TEE OR ELL PVC SCH 40 MALE ADAPTER PVC LATERAL PIPE 3-INCH MINIMUM DEPTH OF 3/4-INCH WASHED GRAVEL © © ©© © @©®@ ®© ©©©© © o CD 00 \l CD kr - © no 2 m ID 0 m cn CD oo HOO ©1 O n I -2 a -2 oOl O 2 ID O l O O© ID o Oo a 8 pn P© <©
