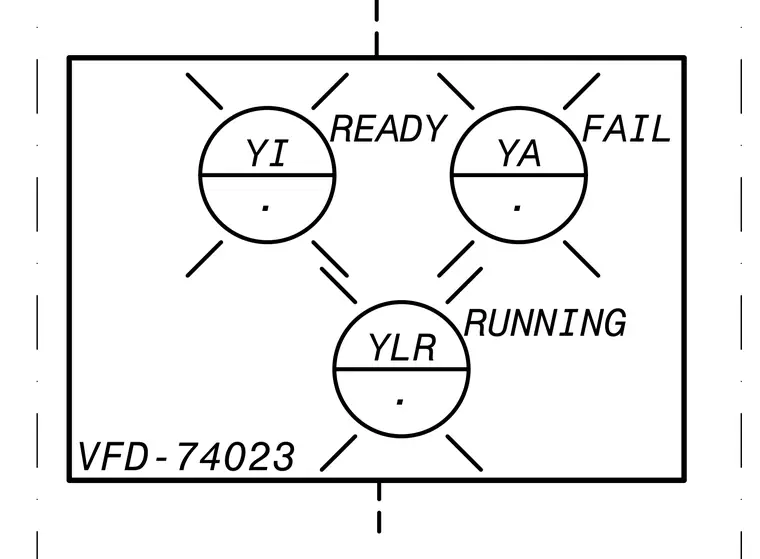

This diagram details the status indicator layout for variable frequency drive VFD-74023. The schematic includes circular indicator symbols labeled YI for ready, YA for fail, and YLR for running.
VFD-74023 . YI READY . YA FAIL . YLR RUNNING
