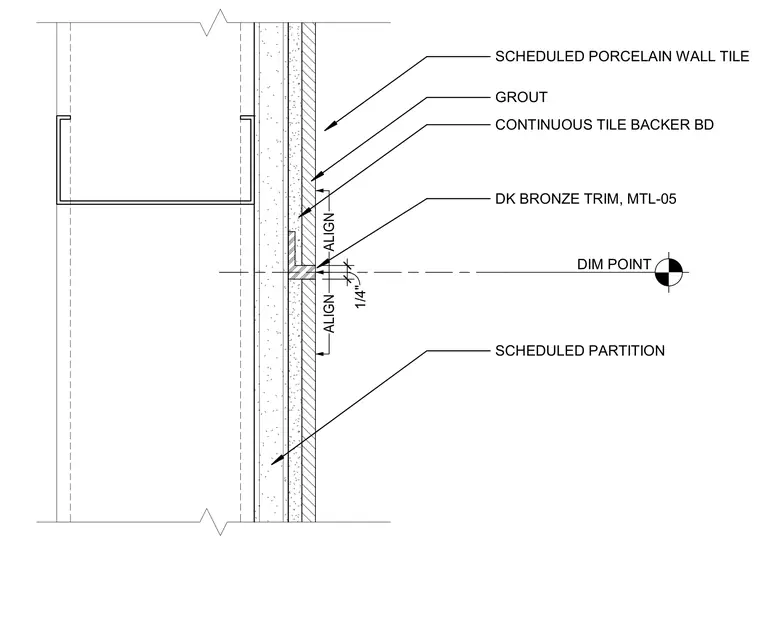

A dark bronze vertical metal trim piece designated as MTL-05 is set flush with scheduled porcelain wall tiles over grout and continuous tile backer board. The tile backer board is mounted to a scheduled partition framed with steel studs. A one-quarter-inch dimension gap aligns the tile courses above and below the trim junction.
DIM POINT SCHEDULED PARTITION CONTINUOUS TILE BACKER BD GROUT SCHEDULED PORCELAIN WALL TILE ALIGN ALIGN DK BRONZE TRIM, MTL-05 1/4"
