The sign features a no smoking symbol and uppercase text reading No Smoking Within 7.62 M of Entrance in Helvetica Medium font with Grade Two Braille. The lettering and symbol are white against a colored background matched to the exterior building colors. Overall sign dimensions are 230 mm wide by 305 mm high with a 20 mm border, positioned at 1524 mm to the floor.

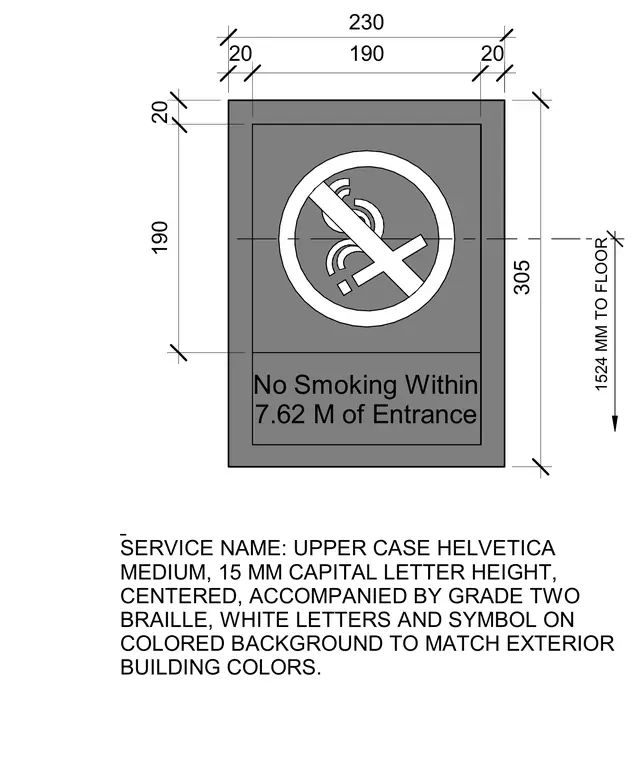

305 No Smoking Within 7.62 M of Entrance SERVICE NAME: UPPER CASE HELVETICA MEDIUM, 15 MM CAPITAL LETTER HEIGHT, CENTERED, ACCOMPANIED BY GRADE TWO BRAILLE, WHITE LETTERS AND SYMBOL ON COLORED BACKGROUND TO MATCH EXTERIOR BUILDING COLORS. 1524 MM TO FLOOR 230 20 190 20 190 20
