An ultrasonic level sensor is flange-mounted to a day tank with specific positioning constraints. The maximum liquid level must remain outside the sensor blocking distance, and the lower edge of the sensor must project into the tank. The sensor face is mounted parallel to the liquid surface while offset from the tank centerline at a ratio of one foot from the sidewall for every twenty feet of tank height. The connecting cable must not be utilized as a suspension or supporting wire.

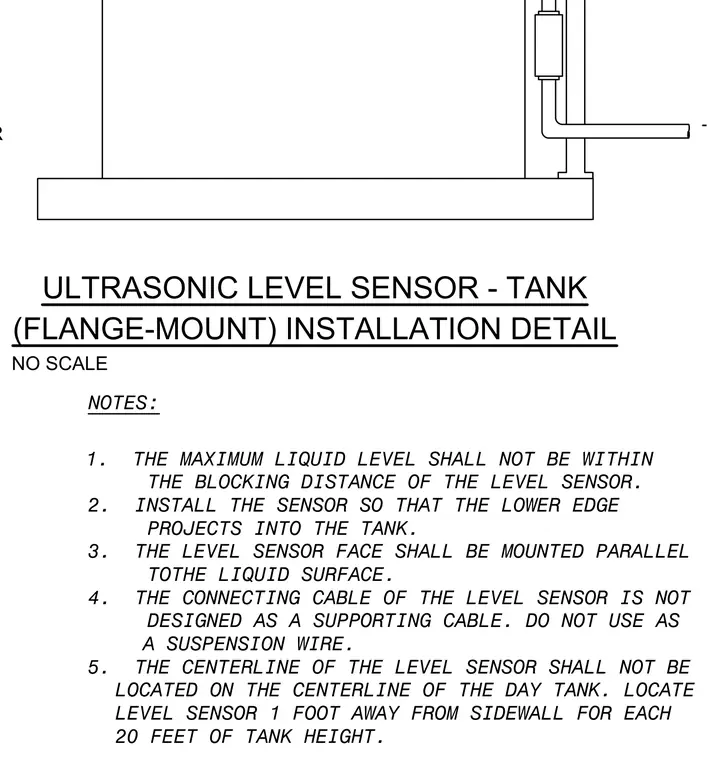

SEE ELECTRICAL DRAWINGS FOR TO LEVEL TRANSMITTER NOTES: 1. THE MAXIMUM LIQUID LEVEL SHALL NOT BE WITHIN THE BLOCKING DISTANCE OF THE LEVEL SENSOR. 2. INSTALL THE SENSOR SO THAT THE LOWER EDGE PROJECTS INTO THE TANK. 3. THE LEVEL SENSOR FACE SHALL BE MOUNTED PARALLEL TOTHE LIQUID SURFACE. 4. THE CONNECTING CABLE OF THE LEVEL SENSOR IS NOT DESIGNED AS A SUPPORTING CABLE. DO NOT USE AS A SUSPENSION WIRE. 5. THE CENTERLINE OF THE LEVEL SENSOR SHALL NOT BE LOCATED ON THE CENTERLINE OF THE DAY TANK. LOCATE LEVEL SENSOR 1 FOOT AWAY FROM SIDEWALL FOR EACH 20 FEET OF TANK HEIGHT. ULTRASONIC LEVEL SENSOR - TANK (FLANGE-MOUNT) INSTALLATION DETAIL NO SCALE
