Plumbing · I-3SEZF

Drip Control Zone Kit Detail

Elements

Waterproofing / Flashing Connections / Plates

About this detail

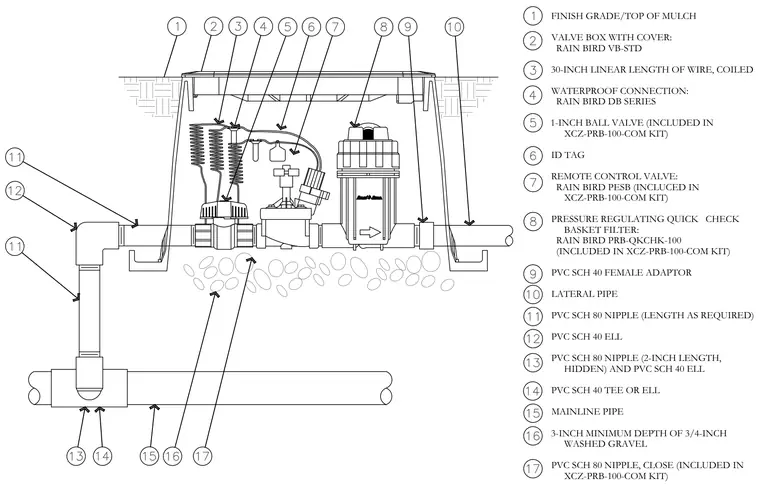

An underground drip control zone kit is housed within a Rain Bird VB-STD valve box set below finish grade and mulch. The assembly connects to a mainline pipe via a PVC Schedule 40 tee or ell, a Schedule 80 close nipple, and a female adaptor, feeding into a 1-inch ball valve, a Rain Bird PESB remote control valve, and a pressure-regulating quick check basket filter. A coiled 30-inch wire connects to the remote control valve using a waterproof Rain Bird DB series connector, with an identification tag attached. Downstream, PVC Schedule 80 nipples and Schedule 40 ells route water into the lateral pipe network. The entire valve assembly rests on a 3-inch minimum depth bed of 3/4-inch washed gravel for drainage.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
