Electrical · I-3EAGJ

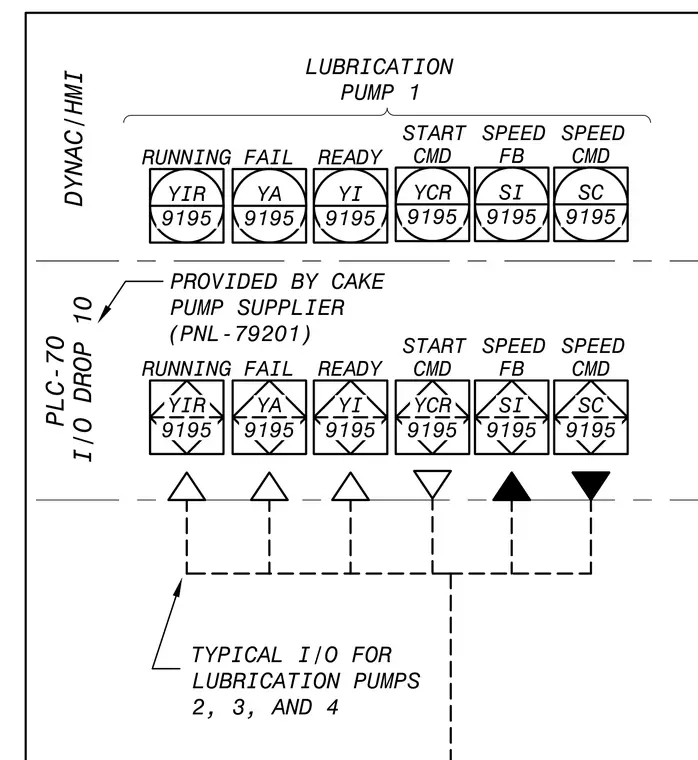

Lubrication Pump I/O Control Diagram

About this detail

Control logic and input-output mapping for lubrication pump systems tied to PLC-70 and the DYNAC/HMI interface. Signal tags include running status, failure alarms, ready status, start commands, speed feedback, and speed command signals. Typical input-output points for secondary lubrication pumps are designated as provided by the pump supplier under panel PNL-79201.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
