Interiors · I-376KE

Reception Counter and Die Wall Millwork Section

Materials

Elements

Walls Partitions Arches Millwork / Casework Roof / Floor Openings

About this detail

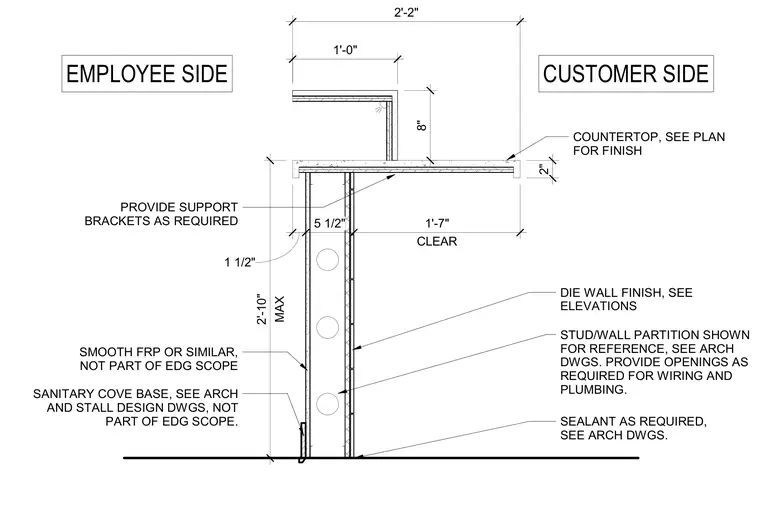

A stud wall partition serves as the base for a reception counter assembly with a designated die wall finish on the customer side and smooth fiberglass reinforced plastic on the employee side. The main countertop extends past the partition with a two-inch thickness, leaving a one-foot seven-inch clear space on the customer side. Support brackets are provided as required beneath the countertop structure. An upper transaction counter shelf sits eight inches above the main countertop with a one-foot depth. Openings are provided within the partition framing for wiring and plumbing integration, and sealant is applied at the base as required.
