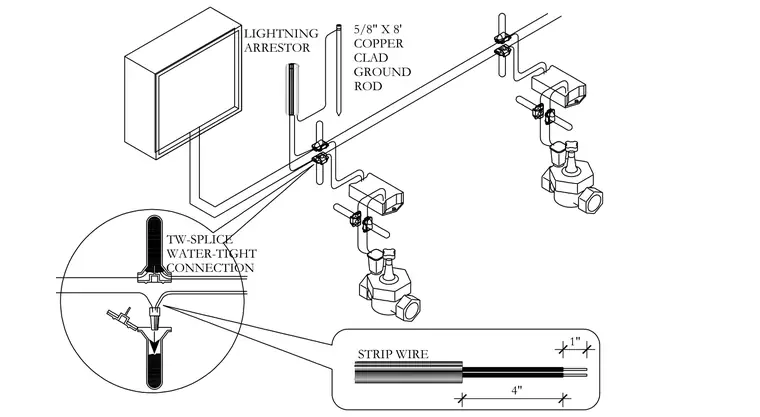

A water-tight two-wire splice connection utilized in an irrigation or electrical control system, paired with a five-eighths inch by eight-foot copper-clad ground rod and a lightning arrestor. Wires are stripped four inches with one-inch conductor exposure before entering the splice component. The assembly ensures weather-resistant wire junctions and proper electrical grounding to protect system components from surges.
LIGHTNING ARRESTOR 5/8" X 8' COPPER CLAD GROUND ROD TW-SPLICE WATER-TIGHT CONNECTION STRIP WIRE 4" 1" 0 0 *-1 + !Ly
