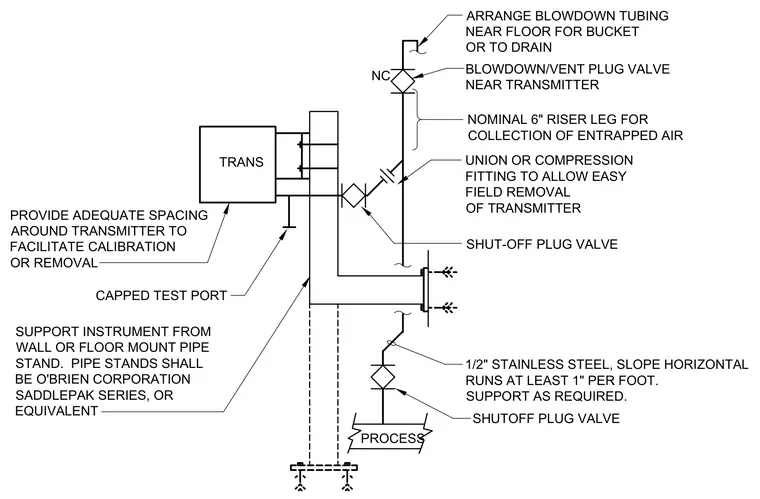

A process instrument transmitter connects to process piping utilizing a floor or wall-mounted pipe stand such as an O'Brien Corporation Saddlepak series. The assembly features a half-inch stainless steel tubing installation with horizontal runs sloped at least one inch per foot, supported as required. Shut-off plug valves and unions or compression fittings are incorporated to facilitate easy field removal and calibration of the transmitter. A nominal six-inch riser leg collects entrapped air, while a blowdown and vent plug valve is arranged near the floor for drainage.
PROCESS NC TRANS CAPPED TEST PORT SUPPORT INSTRUMENT FROM WALL OR FLOOR MOUNT PIPE STAND. PIPE STANDS SHALL BE O'BRIEN CORPORATION SADDLEPAK SERIES, OR EQUIVALENT ARRANGE BLOWDOWN TUBING NEAR FLOOR FOR BUCKET OR TO DRAIN BLOWDOWN/VENT PLUG VALVE NEAR TRANSMITTER NOMINAL 6" RISER LEG FOR COLLECTION OF ENTRAPPED AIR UNION OR COMPRESSION FITTING TO ALLOW EASY FIELD REMOVAL OF TRANSMITTER SHUT-OFF PLUG VALVE 1/2" STAINLESS STEEL, SLOPE HORIZONTAL RUNS AT LEAST 1" PER FOOT. SUPPORT AS REQUIRED. SHUTOFF PLUG VALVE PROVIDE ADEQUATE SPACING AROUND TRANSMITTER TO FACILITATE CALIBRATION OR REMOVAL
