Base Cabinet with Drawer and Countertop

Materials

Elements

About this detail

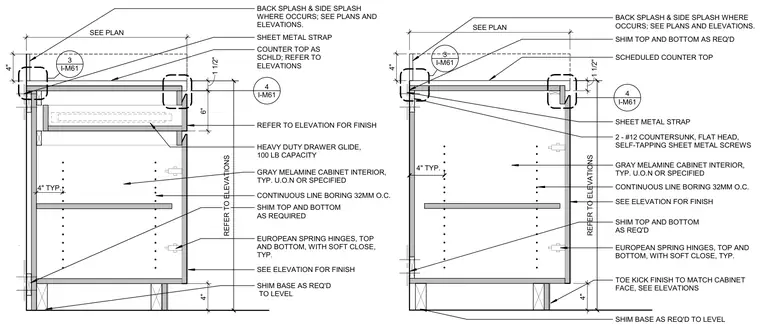

This base cabinet construction detail shows standard casework featuring a gray melamine interior with continuous line boring at thirty-two millimeters on center. The cabinet rests on a base shimmed as required for leveling, finished with a toe kick matching the cabinet face. European spring hinges with soft close mechanisms support the cabinet doors. A heavy-duty drawer glide with a one-hundred-pound capacity is installed at the top drawer opening. A scheduled countertop is secured with sheet metal straps fastened using two number-twelve countersunk flat head self-tapping sheet metal screws, with shims placed at the top and bottom as required. Four-inch backsplashes and side splashes are included where applicable.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
