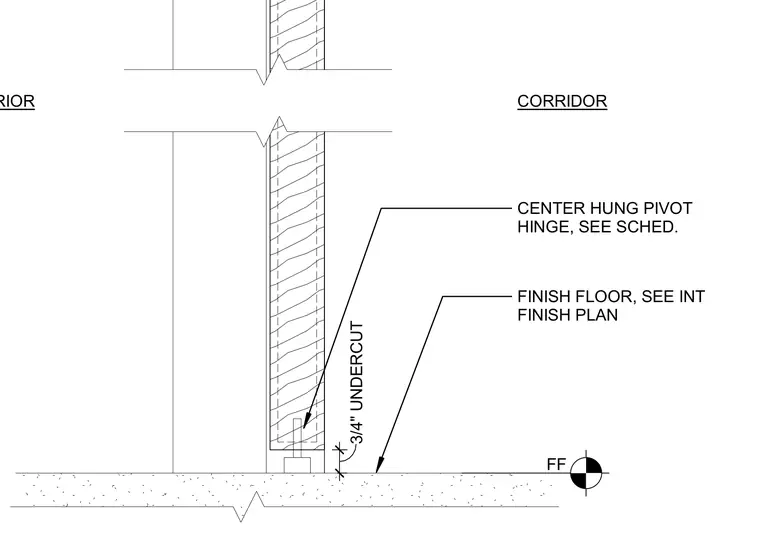

Head and sill conditions for a center-hung pivot door assembly between an interior space and a corridor. The sill incorporates a three-quarter-inch undercut above the finish floor level, utilizing a center-hung pivot hinge specified per the door schedule. The interior finish materials are coordinated with the interior finish plan.
FF FINISH FLOOR, SEE INT FINISH PLAN CORRIDOR INTERIOR 3/4" UNDERCUT CENTER HUNG PIVOT HINGE, SEE SCHED.
