Satellite Controller Enclosure Top Entry

Materials

Elements

About this detail

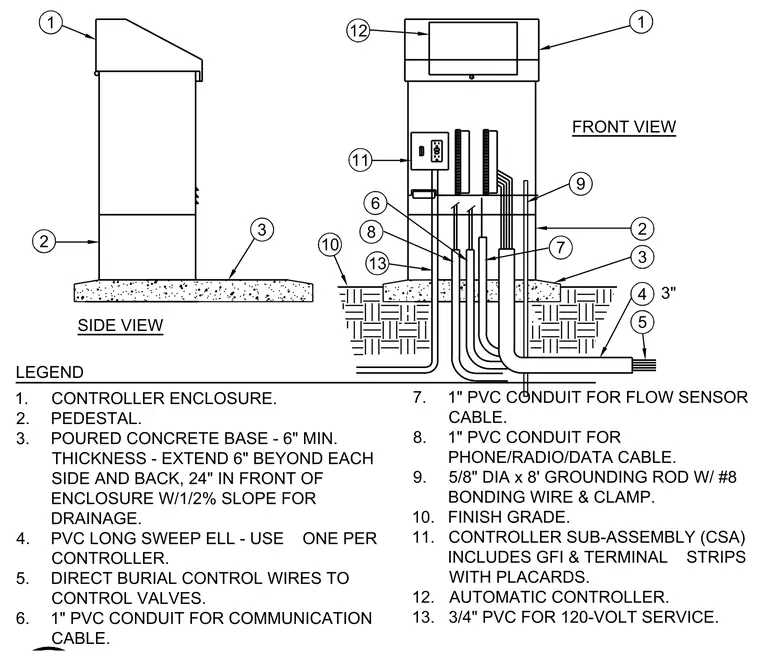

The assembly consists of an automatic controller enclosure mounted on a pedestal set over a poured concrete base with a minimum six-inch thickness, extending six inches beyond each side and back, and twenty-four inches in front with a one-half percent slope for drainage. Utility feeds include a three-quarter-inch PVC conduit for one hundred twenty-volt service, one-inch PVC conduits for communication, flow sensor, and phone, radio, or data cables, and a PVC long sweep elbow for direct burial control wires running to control valves. A five-eighths-inch diameter by eight-foot grounding rod is installed with a number eight bonding wire and clamp. The controller sub-assembly includes a ground fault interrupter and terminal strips with placards.
