Electrical · I-2ASRR

Wet Scrubber Drain Pump 3 Standby Control Diagram

Elements

About this detail

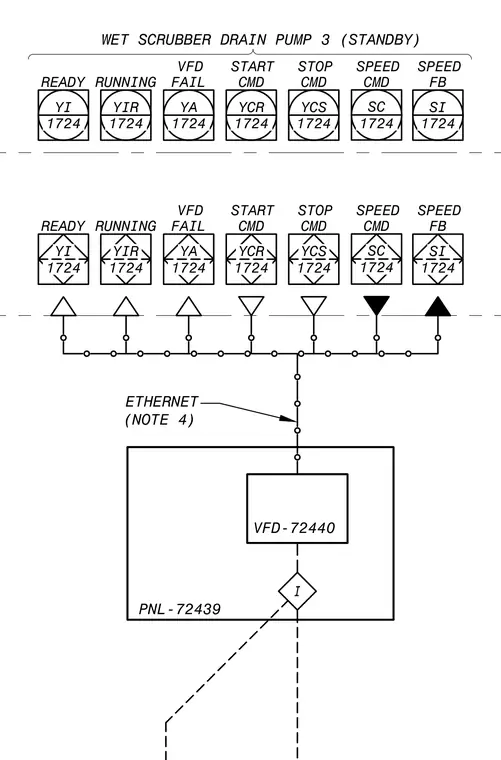

Control logic and signal routing diagram for wet scrubber drain pump 3 standby, featuring inputs for pump ready, running status, and variable frequency drive failure signals. Start command, stop command, speed command, and speed feedback signals interface with panel PNL-72439 housing variable frequency drive VFD-72440. An Ethernet connection communicates system telemetry per note 4.
