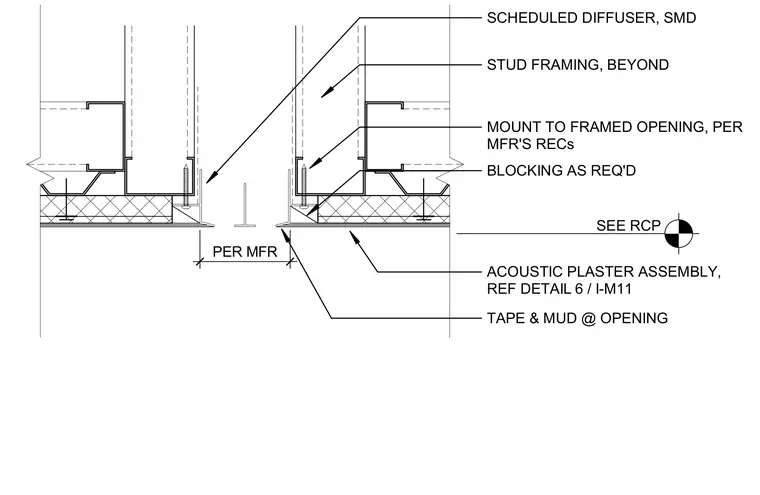

A scheduled diffuser mounts directly to the framed opening with blocking as required, following the manufacturer's recommendations. The acoustic plaster assembly ties into the opening with tape and mud, creating a clean flush transition at the diffuser edge.
SEE RCP ACOUSTIC PLASTER ASSEMBLY, REF DETAIL SCHEDULED DIFFUSER, SMD 6 / I-M11 TAPE & MUD @ OPENING STUD FRAMING, BEYOND PER MFR BLOCKING AS REQ'D MOUNT TO FRAMED OPENING, PER MFR'S RECs
