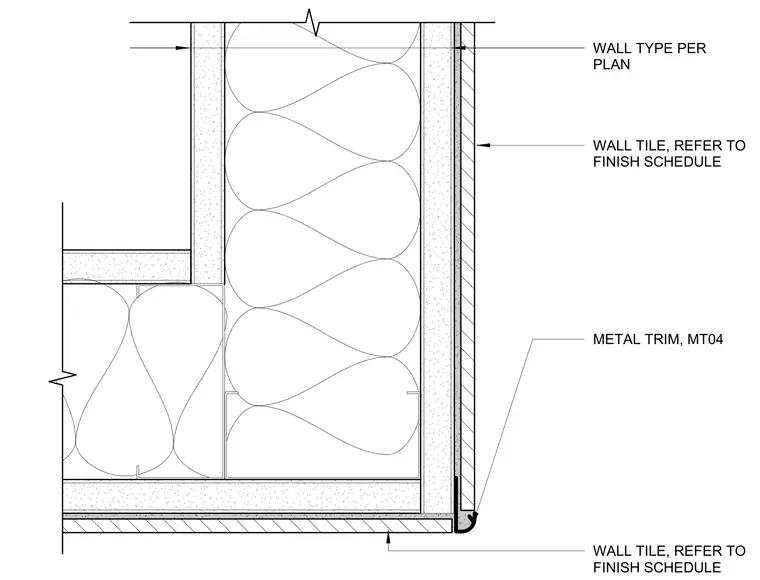

The wall construction utilizes stud framing with sheathing as specified per plan, finished with wall tile according to the finish schedule. An MT04 metal trim piece protects and finishes the 90-degree outside corner condition. Wall tile is applied continuously around the exterior turn meeting the edge of the metal trim profile.
WALL TYPE PER PLAN WALL TILE, REFER TO FINISH SCHEDULE WALL TILE, REFER TO FINISH SCHEDULE METAL TRIM, MT04
