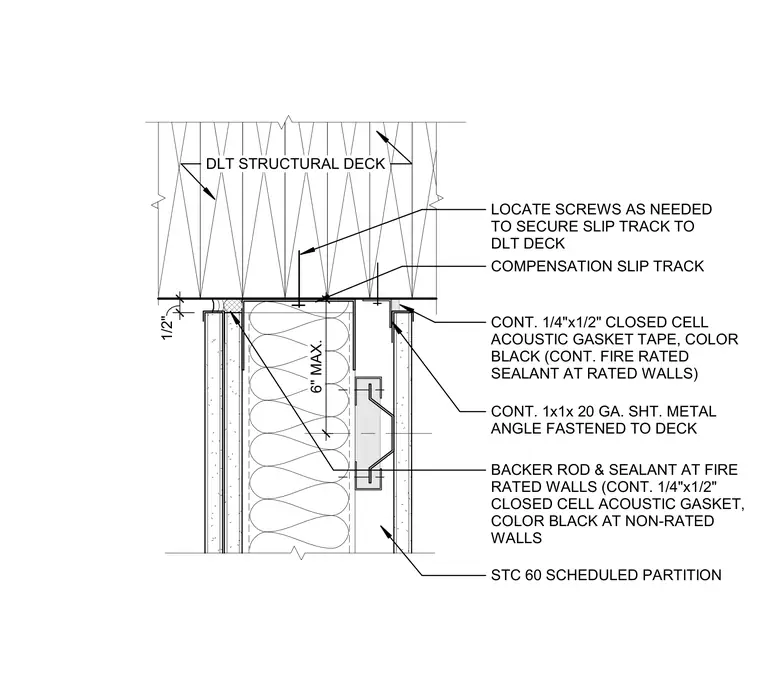

An STC 60 scheduled partition terminates below a dowel-laminated timber structural deck with a compensation slip track secured by screws as needed. A continuous one-inch by one-inch by twenty-gauge sheet metal angle is fastened to the deck on each side. Continuous one-quarter-inch by one-half-inch closed cell acoustic gasket tape in black is provided, with continuous fire-rated sealant applied at rated walls. At non-rated walls, continuous closed cell acoustic gasket tape is used alongside a one-half-inch backer rod and sealant with a six-inch maximum dimension.
DLT STRUCTURAL DECK COMPENSATION SLIP TRACK STC 60 SCHEDULED PARTITION LOCATE SCREWS AS NEEDED TO SECURE SLIP TRACK TO DLT DECK CONT. 1x1x 20 GA. SHT. METAL ANGLE FASTENED TO DECK CONT. 1/4"x1/2" CLOSED CELL ACOUSTIC GASKET TAPE, COLOR BLACK (CONT. FIRE RATED SEALANT AT RATED WALLS) 1/2" 6" MAX. BACKER ROD & SEALANT AT FIRE RATED WALLS (CONT. 1/4"x1/2" CLOSED CELL ACOUSTIC GASKET, COLOR BLACK AT NON-RATED WALLS
