A continuous wood frame is installed within the scheduled partition wall with continuous caulking at the perimeter. The door frame finish matches the door leaf, and the hinge is specified per the door hardware schedule. A half-inch plywood backer supports the three-quarter-inch thick wood veneer facing, with finish details aligned per the interior elevations.

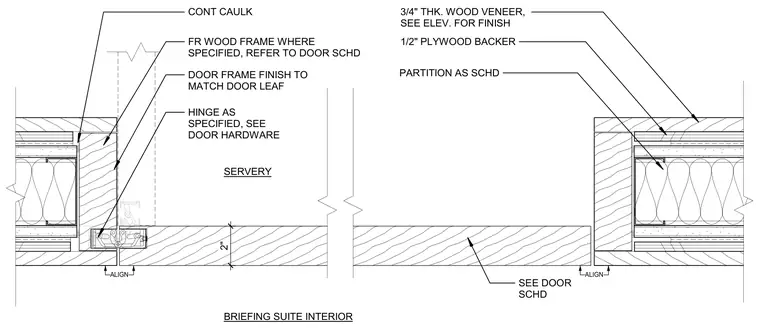

SEE DOOR SCHD PARTITION AS SCHD SERVERY FR WOOD FRAME WHERE SPECIFIED, REFER TO DOOR SCHD CONT CAULK DOOR FRAME FINISH TO MATCH DOOR LEAF HINGE AS SPECIFIED, SEE DOOR HARDWARE BRIEFING SUITE INTERIOR ALIGN ALIGN 2" 1/2" PLYWOOD BACKER 3/4" THK. WOOD VENEER, SEE ELEV. FOR FINISH
