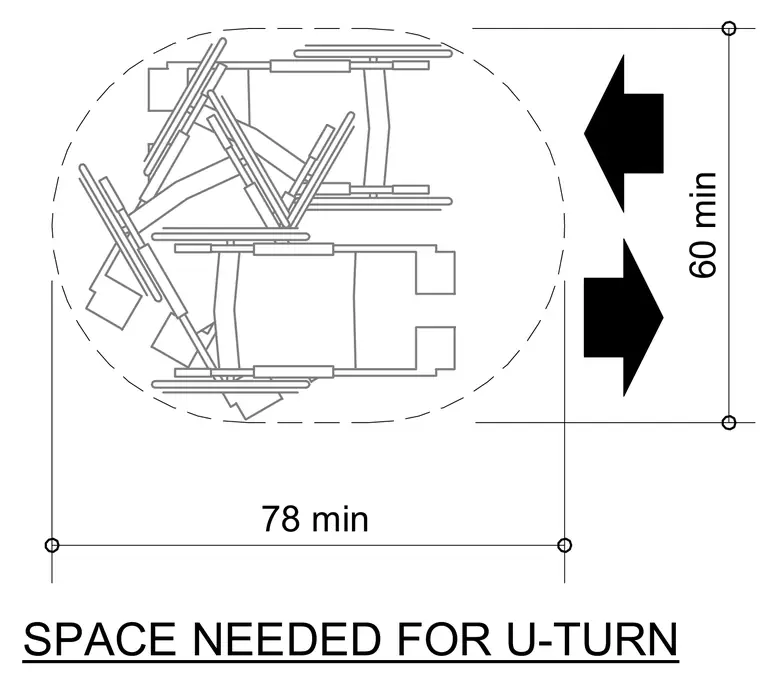

This diagram establishes the minimum clear floor space required for a wheelchair to execute a 180-degree U-turn. The layout provides a minimum width of sixty inches by a minimum length of seventy-eight inches. These dimensions satisfy accessibility standards for turning clearances in dead-end corridors and restricted spaces.
