A clear width dimension of thirty-two inches or eight hundred fifteen millimeters minimum is measured from the face of the door leaf to the stop of the door frame with the hinged door set at a ninety-degree angle. The door leaf stands perpendicular to the door jambs in the open position.

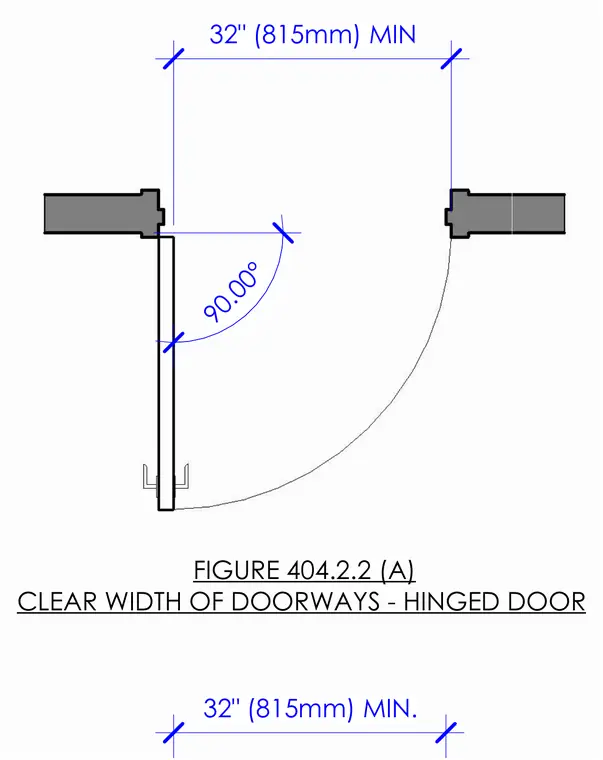

FIGURE 404.2.2 (A) CLEAR WIDTH OF DOORWAYS - HINGED DOOR 32" (815mm) MIN 90.00° 32" (815mm) MIN.
