The markerboard secures to a scheduled metal stud wall using manufacturer-provided angle clips and number twelve by sixteen offset hex washer head machine screws spaced at sixteen inches on center maximum. Fasteners penetrate one-half inch into a structural backing plate per detail two-A on sheet S seven point zero two. A markerboard tray aligns at three feet zero inches above finished floor, and all mounting heights must be verified typically.

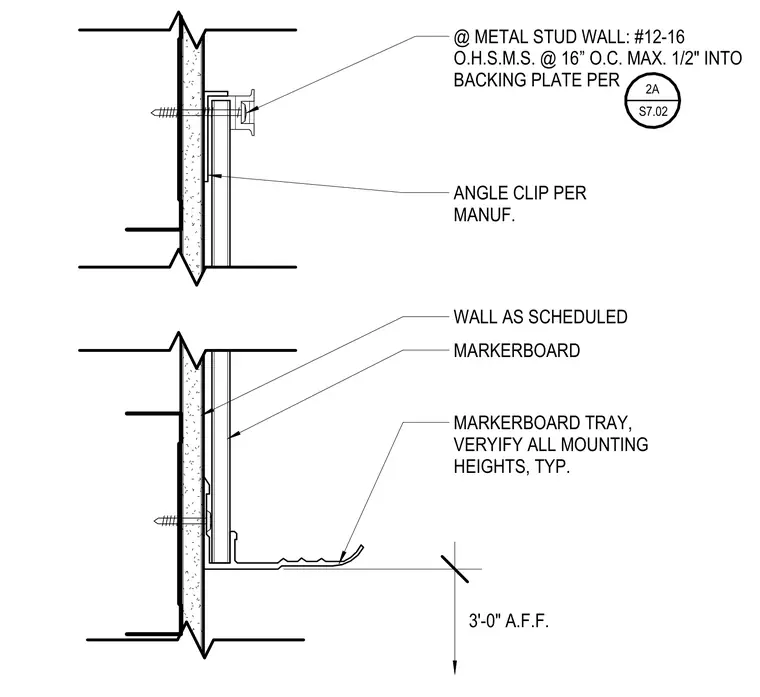

ANGLE CLIP PER MANUF. WALL AS SCHEDULED MARKERBOARD MARKERBOARD TRAY, VERYIFY ALL MOUNTING HEIGHTS, TYP. @ METAL STUD WALL: #12-16 O.H.S.M.S. @ 16” O.C. MAX. 1/2" INTO BACKING PLATE PER 2A S7.02 3'-0" A.F.F.
