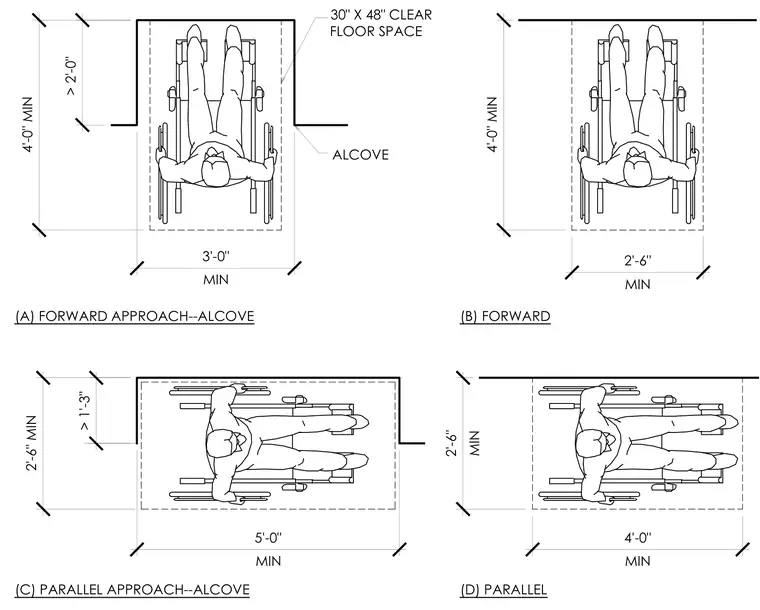

Forward and parallel approach clearances provide mandatory maneuvering space for wheelchairs in open configurations and restricted alcoves. A standard thirty by forty-eight inch clear floor space is maintained across all four configurations. Alcove approaches require specific minimum depths and widths, including a three-foot minimum width with a greater than two-foot depth for forward alcoves and a five-foot minimum width with a greater than one-foot-three-inch depth for parallel alcoves. Open approaches without alcove restrictions require minimum depths of four feet for forward approaches and two feet six inches for parallel approaches.
2'-6" MIN > 1'-3" (D) PARALLEL 4'-0" MIN (C) PARALLEL APPROACH--ALCOVE 5'-0" MIN (B) FORWARD 4'-0" MIN ALCOVE 3'-0" MIN > 2'-0" (A) FORWARD APPROACH--ALCOVE 30" X 48" CLEAR FLOOR SPACE 2'-6" MIN 4'-0" MIN 2'-6" MIN
