Mounting requirements and graphic layout for an emergency exit stairway sign. The acrylic plate features raised characters with a minimum height of one-half inch alongside Contracted California Grade 2 Braille. The sign is adhesive mounted unless noted otherwise and positioned between forty-eight inches minimum and sixty inches maximum above the finished floor.

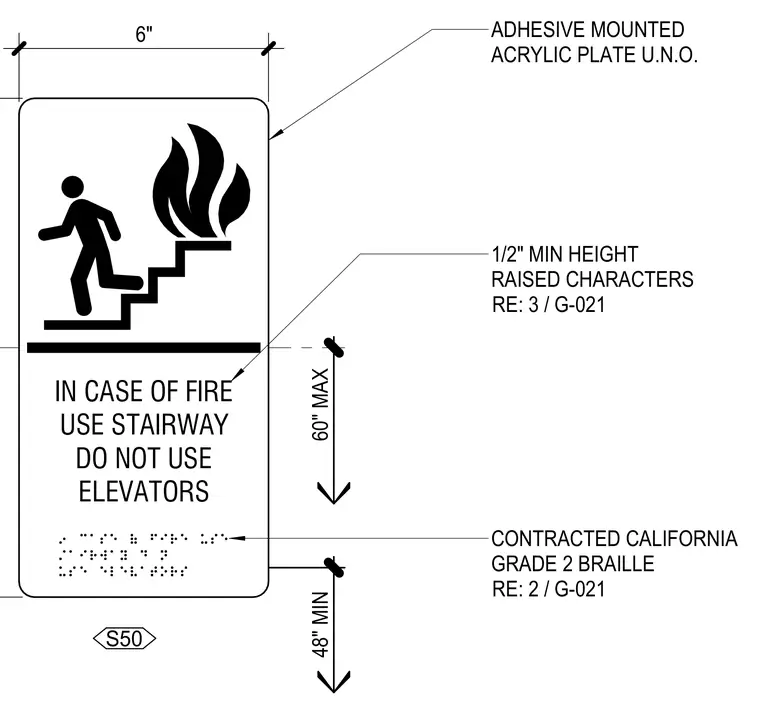

IN CASE OF FIRE USE STAIRWAY DO NOT USE ELEVATORS 48" MIN 60" MAX 1/2" MIN HEIGHT RAISED CHARACTERS ADHESIVE MOUNTED ACRYLIC PLATE U.N.O. CONTRACTED CALIFORNIA GRADE 2 BRAILLE RE: 3 / G-021 RE: 2 / G-021 6" S50
