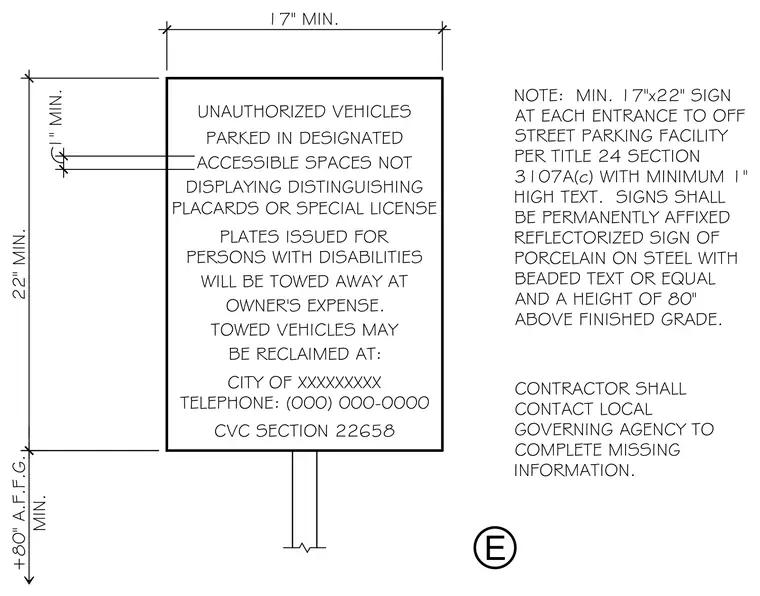

An accessible parking tow-away sign is mounted on a post at a minimum height of eighty inches above finished grade. The sign plate measures seventeen inches wide by twenty-two inches high with a minimum text height of one inch. The permanently affixed reflectorized sign is constructed of porcelain on steel with beaded text per Title 24 Section 3107A(c). The contractor must contact the local governing agency to complete missing information regarding towing and reclamation details.
UNAUTHORIZED VEHICLES PARKED IN DESIGNATED ACCESSIBLE SPACES NOT DISPLAYING DISTINGUISHING PLACARDS OR SPECIAL LICENSE PLATES ISSUED FOR PERSONS WITH DISABILITIES WILL BE TOWED AWAY AT OWNER'S EXPENSE. TOWED VEHICLES MAY BE RECLAIMED AT: CITY OF XXXXXXXXX TELEPHONE: (000) 000-0000 CVC SECTION 22658 NOTE: MIN. 17"x22" SIGN AT EACH ENTRANCE TO OFF STREET PARKING FACILITY PER TITLE 24 SECTION 3107A(c) WITH MINIMUM 1" HIGH TEXT. SIGNS SHALL BE PERMANENTLY AFFIXED REFLECTORIZED SIGN OF PORCELAIN ON STEEL WITH BEADED TEXT OR EQUAL AND A HEIGHT OF 80" ABOVE FINISHED GRADE. CONTRACTOR SHALL CONTACT LOCAL GOVERNING AGENCY TO COMPLETE MISSING INFORMATION. E 22" MIN. 1" MIN. 17" MIN. +80" A.F.F.G. MIN.
