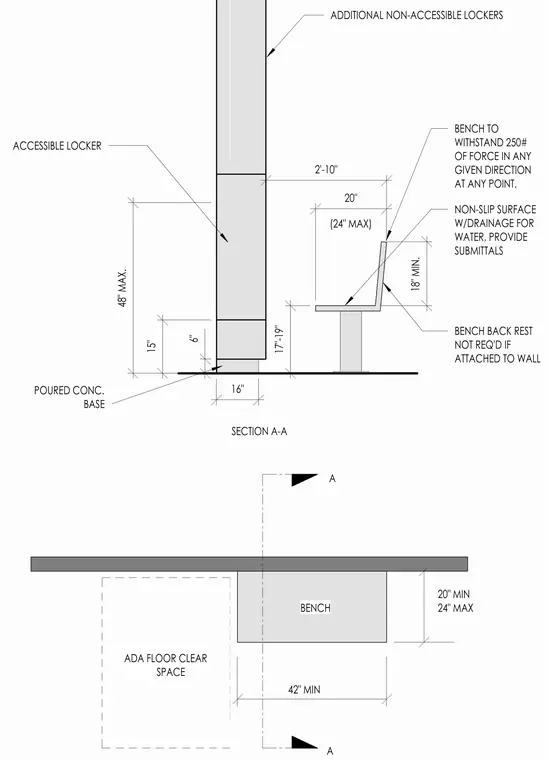

An accessible locker bench is anchored adjacent to accessible and non-accessible lockers mounted on a poured concrete base. The bench features a non-slip surface with drainage for water and submittals are required. The bench is designed to withstand two hundred fifty pounds of force in any given direction at any point. The backrest is not required if attached to the wall. The assembly includes specific ADA floor clear space dimensions and height clearances.
15" 48" MAX. 2'-10" 20" (24" MAX) 17"-19" 18" MIN. 16" 6" ADDITIONAL NON-ACCESSIBLE LOCKERS ACCESSIBLE LOCKER BENCH TO WITHSTAND 250# OF FORCE IN ANY GIVEN DIRECTION AT ANY POINT. NON-SLIP SURFACE W/DRAINAGE FOR WATER, PROVIDE SUBMITTALS POURED CONC. BASE BENCH BACK REST NOT REQ'D IF ATTACHED TO WALL BENCH ADA FLOOR CLEAR SPACE 42" MIN 20" MIN 24" MAX A A SECTION A-A
